Description

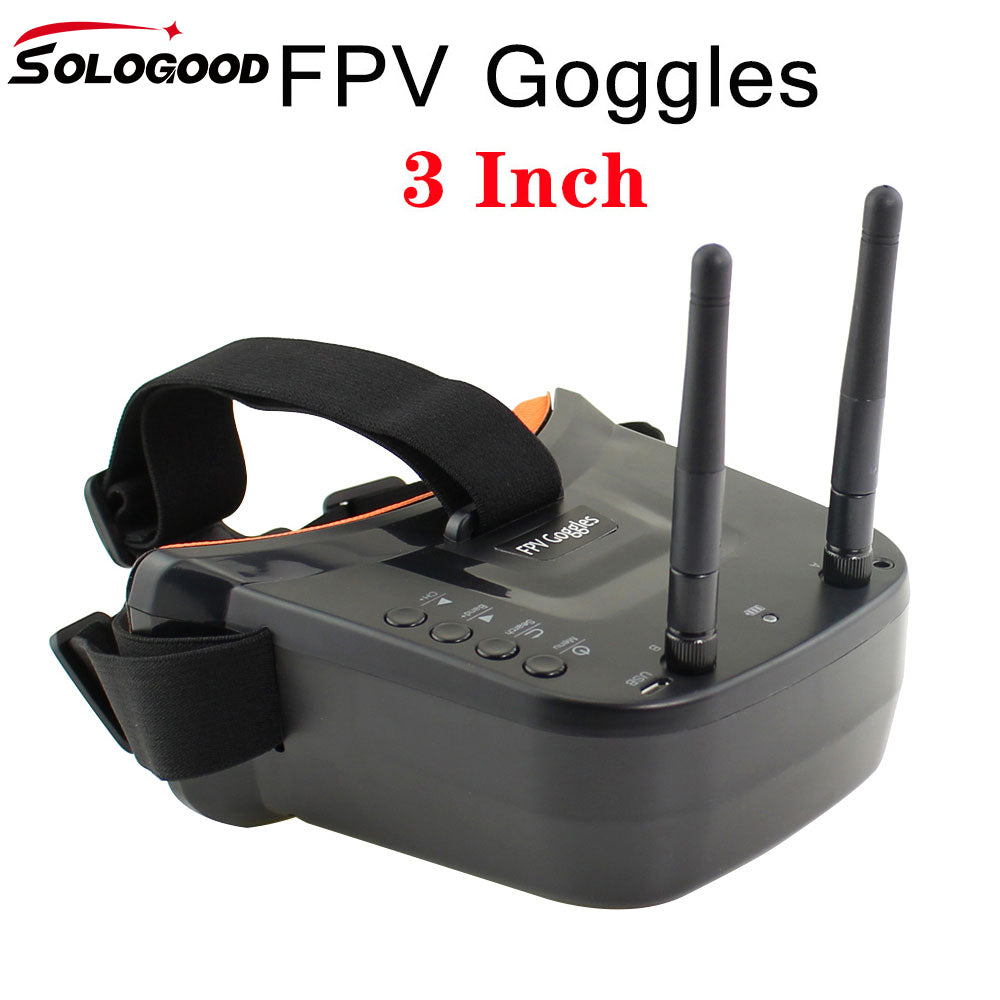

mini fpv goggles LST-009 5.8G 40CH Dual Antennas FPV Goggles Monitor Video Glasses HeaFeature: Small size and light weight; Low power consumption, Working current 300~330mA; Double antenna reception to make the signal more stable; RaceBand 40 channel, Auto Searching; 3. 0 Inch 480*320 dot high brightness LCD screen; Built in super sensitiveness 5. 8GHz 40ch receiver, especially with RaceBand; Built in 3. 7V 1200mAh high capacity Li ion polymer Battery; Universal USB charging interface; Real time video return, Very low time delay;
Feature:
● Small size and light weight;
● Low power consumption, Working current 300~330mA;
● Double antenna reception to make the signal more stable;
● RaceBand 40 channel, Auto-Searching;
● 3.0 Inch 480*320 dot high brightness LCD screen;
● Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
● Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;
● Universal USB charging interface;
● Real-time video return, Very low time-delay;
● Bilingual menu in support of Chinese and English;
● Support external video signal input;
● Support AV signal output (Connect external DVR);
Specification:
|
Model |
|
||||||||
|
Name |
Mini FPV Goggles |
||||||||
|
LCD Screen |
Screen size: 3.0 Inch |
||||||||
|
Resolution: 480*320 |
|||||||||
|
Display Ratio: 16:9 |
|||||||||
|
View Angle: 6 o'clock |
|||||||||
|
Brightness: 350cd/m⊃2; with high brightness backlight LED |
|||||||||
|
Video delay |
Video time-delay less than 20ms |
||||||||
|
Lens |
4X Fresnel Lens, 92% transparent rate no distort of light |
||||||||
|
Interface |
Antenna |
2 X RP-SMA male |
|||||||
|
USB |
To charge the battery |
||||||||
|
AV Jack |
External video signals input or internals AV signal output |
||||||||
|
Languages |
English and Chinese |
||||||||
|
Power Supply |
Power adapter: DC5V/1A (USB interface) |
||||||||
|
Battery: 3.7V/1200mAh,Each full charge revive around 2.5hr working time |
|||||||||
|
Power Consumption: *The device operating current of 300~330mA at 3.7~4.2V; *Built-in battery maximum charge current of 500mA; |
|||||||||
|
Wireless |
Frequency Table(MHz) |
||||||||
|
|
CH1 |
CH2 |
CH3 |
CH4 |
CH5 |
CH6 |
CH7 |
CH8 |
|
|
Band A |
5865 |
5845 |
5825 |
5805 |
5785 |
5765 |
5745 |
5725 |
|
|
Band B |
5733 |
5752 |
5771 |
5790 |
5809 |
5828 |
5847 |
5866 |
|
|
Band E |
5705 |
5685 |
5665 |
5645 |
5885 |
5905 |
5925 |
5945 |
|
|
Band F |
5740 |
5760 |
5780 |
5800 |
5820 |
5840 |
5860 |
5880 |
|
|
Band R |
5658 |
5695 |
5732 |
5769 |
5806 |
5843 |
5880 |
5917 |
|
|
Body |
Dimension: 13.5cm * 13.2cm * 6.5cm |
||||||||
|
Weight: 180g(with headband, not included antennas) |
|||||||||
Controls Diagram:
Description:
① Key 1: Short press for MENU mode; Long press (More than 3 sec) for Power ON/OFF.
② Key 2: Short press for Auto-Searching (Automatic selection of the strongest channel).
③ Key 3: Short press for Band+ (Change bands A-B-E-F-R circularly).
④ Key 4: Short press for Channel+ (Change channels 1-2-3-4-5-6-7-8 circularly).
⑤ Eye ring: protect the surrounding parts of the eyes, so that the wear more comfortable.
⑥ Micro-USB Charging port: Supports DC5V only.
⑦ Antenna port A: RP-SMA male.
⑧ Charging indicator: Red light when charging light; full power, the indicator goes off.
⑨ Antenna port B: RP-SMA male.
⑩ AV Jack: In RF receiving mode can output AV signal; In AV mode can enter the video signal.
⑪ Head band: Adjustable headband.
Menu Operation Instructions:
In normal mode, press Key 1 to enter the MENU mode.
In MENU mode:
① Key 1: Select the option bar.
② Key 2: Return to normal mode.
③ Key 3: Value -.
④ Key 4: Value +.
AV port Instructions:
Dimension Diagram:
Not included antennas and headband.
Safety instruction:
1. Read the entire instruction manual to become familiar with the features of the product before operating.
2. Age Recommendation: Over 14 years old. Using any near eye displays on children under 14 can cause eye development problems. This is not a toy.
3. Please avoid wet or humid environments.
4. Please use standard USB charger, charging voltage can only be 5V.
5. AV output and Video input cannot work at the same time, It is forbidden to insert external video in RF receiving mode.
